Description
- Brand Name: currentman
- Model Number: UL3132-22AWG
- Insulation Material: RUBBER
- Conductor Material: Copper
- Application: hook-up wire
- is_customized: Yes
- Type: Insulated
- Conductor Type: Stranded
- Gauge: 22AWG
- Conductor: Tinned copper
- Insulator: Silicone rubber
- Temperature Rating: -60 Celsius to +150 Celsius
- Conductor specification: 22/0.14TS (Contains 22 copper wires with a diameter of 0.14mm)
- Rated voltage: 300V
- Resistance: 39.5 ohm/KM
- Over diameter: 1.45mm
- Thickness of insulator: 0.345mm

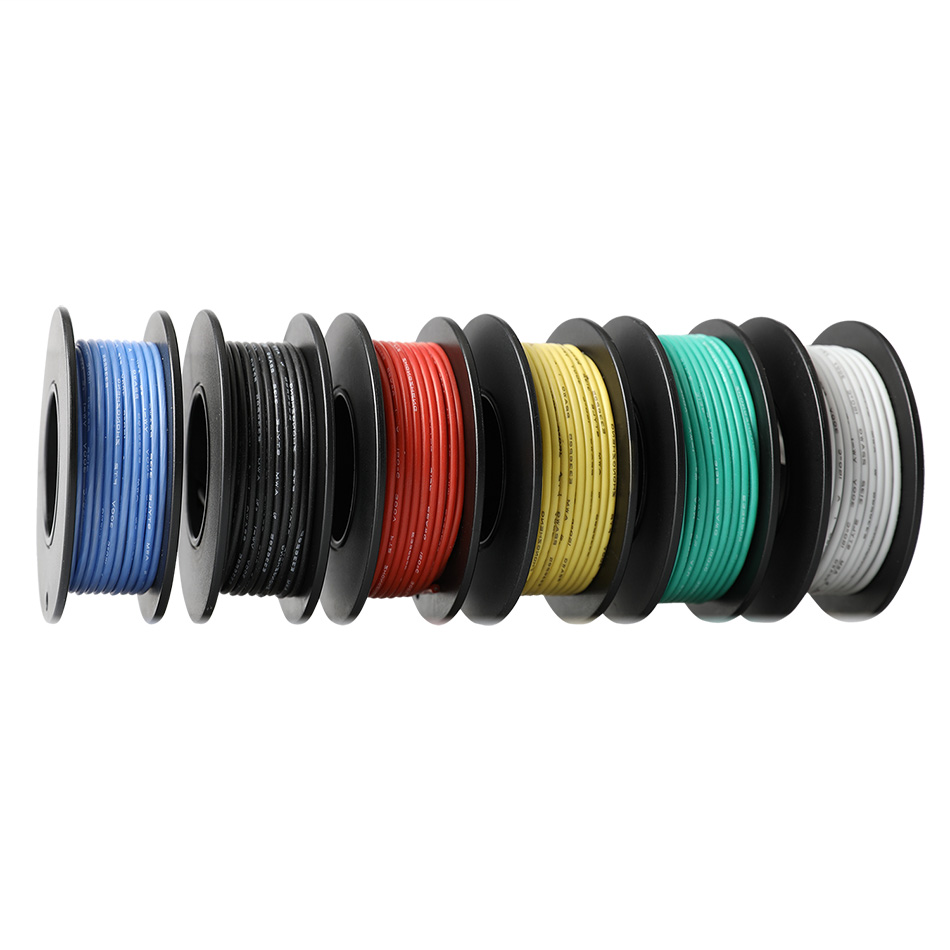

- Available Colors: Red, Black, White, Green, Yellow, Blue
- Application: Electric lights, lighting, electrical appliances, toys, DIY, etc.
